MODEL VM

Gilardoni’s gear pumps series  monobloc “VM” are characterized by the extreme versatility of application. The special feature of this pump, driven by electric motors B3 / B14 is the direct coupled by flexible coupling, without feet or base plates .. Adapting to electric motors is allowed by the adoption of a lantern B14 flange mounted on the pump. This peculiarity with the absence of feet and the support bases allows the mounting on horizontal, vertical pipes, with any inclination, also thanks to the patented design feature that allows a rotation of the pump on the driving axle of 360 ° with the next block at the position desired. Series is designed with pressure valve By pass and mechanical seal in Viton. They can be installed with the vertical engine axis.

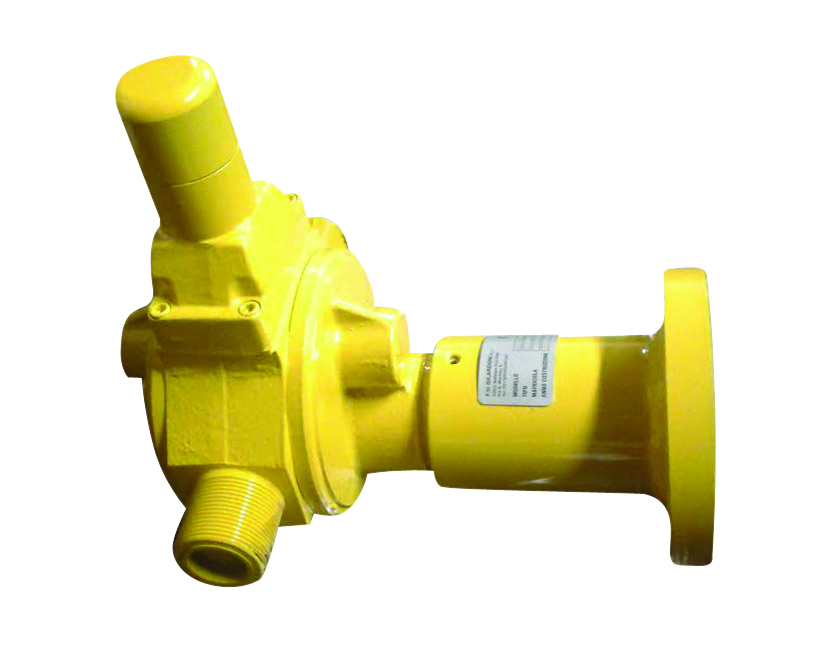

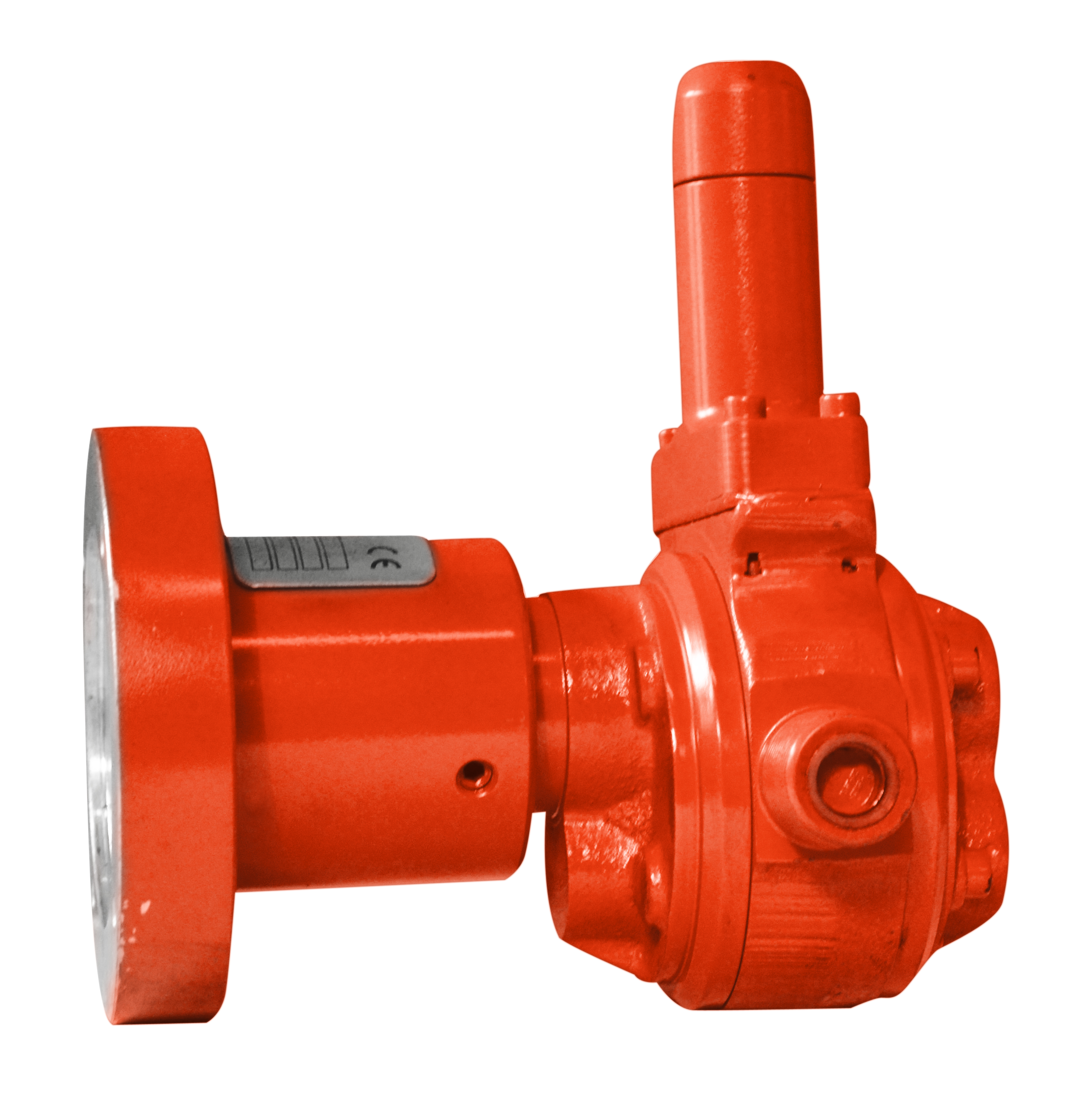

DSC_0196hpompa serie VM
